Let Jerhen/Warren prove our services and equipment to you. Our inspection department vision machines use the same technology as our new vision equipment. We provide high speed dimensional inspection using high resolution cameras for the following types of parts.

Our vision systems can run from single camera to muti-camera configurations system looking at straight/horizontal views, 90 degree horizontal and overhead views. Contact us today for additional information and pricing

Inspection - ISO Certified

Automated Vision Sorting
Size Capabilities	Vision Sort Capabilities		Hand Sort Capabilities		Belt Sort Capabilities
-	Metric	Inch	Metric	Inch	Metric	Inch
Diameter:	M1.4 to M14	#1 to 7/16"	M3 to M20	#4 to 3/4"	M3 to M20	#4 to 3/4"
Length:	4mm to 191mm	.157" to 7.50"	8mm to 200mm	5/16" to 8"	8mm to 200mm	5/16" to 8"
Sort Feature	Defects		Defects		Defects
Head	Height, Diameter, Recess		Cracks, Chipped or Broken Punches		Undersize
Length	Overall-Oversize, Undersize		Overall-Oversize, Undersize		-
Thread	Blanks, Spirals, Short, Bent		Blanks, Spirals, Short, Bent		Blanks, Bent
Point	Missing, Defective		Missing, Defective		Missing, Defective
Grooves	Missing, Oversize, Undersize		Missing, Oversize, Undersize		Missing
Washers	Missing, Double		Missing, Double		Missing, Double
Double End Studs	Blanks, Spirals, Short, Bent, Collars		Blanks, Spirals Short, Bent, Collars		Blanks, Bent, Collars
Adhesives	Presence & Location of 360 Degree		Presence of or Location		Presence of or Location
All Parts	Foreign, Mixed		Foreign, Mixed		Foreign, Mixed

Packaging and labeling available

Need Inspection Products instead of services? Click here for our Inspection Products.

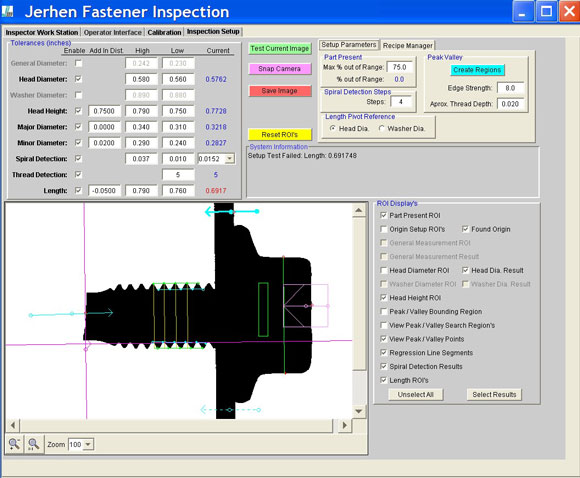

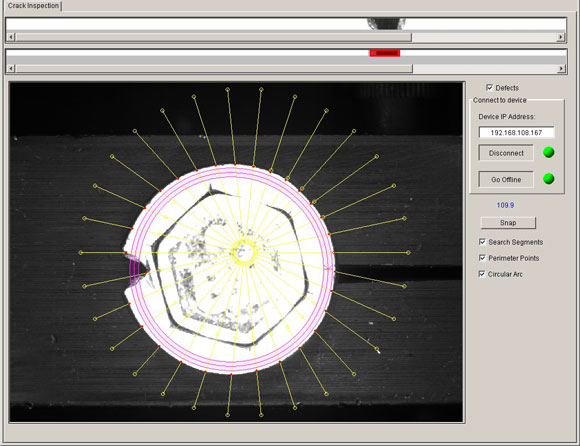

Sample Vision System Screenshot		Sample Vision System Screenshot
Click to enlarge		Click to enlarge
